If you’ve ever looked at your eye prescription and felt completely lost, you’re not alone. Most prescriptions are filled with abbreviations, numbers, and terms that don’t mean much unless an eye doctor explains them. Astigmatism prescriptions can seem even more confusing because they include extra measurements beyond basic vision correction. The good news is that once you understand what each section means, reading your prescription becomes much easier. In this guide, we’ll walk through every part of an astigmatism prescription and explain what those numbers are actually telling you about your eyes.
How Do I Read My Astigmatism Prescription?
An astigmatism prescription contains several measurements that work together to help your eye doctor correct your vision. Each value serves a specific purpose. Let’s take a moment to understand them.
1. OD and OS
The first thing you’ll usually notice is OD and OS.
OD – refers to your right eye.
OS – refers to your left eye.
Sometimes you may also see OU, which refers to both eyes together.
These abbreviations simply help identify which prescription values belong to which eye.
2. Sphere (SPH)
Sphere, often written as SPH, indicates whether you are nearsighted or farsighted.
If the number has a minus sign (-), it means you are nearsighted. This means nearby objects appear clear, while distant objects may look blurry.
Example: -2.50
If the number has a plus sign (+), it means you are farsighted. In this case, close-up objects may be more difficult to focus on.
Example: +1.00
The higher the number, the stronger the vision correction required.
3. Cylinder (CYL)
The CYL value measures the amount of astigmatism present in your eye.
Astigmatism occurs when the cornea or lens is not perfectly round, causing light to focus unevenly on the retina.
The cylinder value tells your eye doctor how much correction is needed.
| Cylinder Value | Astigmatism Level | Typical Treatment |
|---|---|---|
| Less than 1.00 D | Mild | May not require correction in some cases |
| 1.00 D to 2.00 D | Moderate | Corrective glasses, contact lenses, or refractive surgery |
| 2.00 D to 3.00 D | Severe | Toric glasses, rigid gas permeable lenses, LASIK, PRK, or LASEK |
| Greater than 3.00 D | Extreme | ICL, LASIK, PRK, or corneal crosslinking depending on suitability |
A higher cylinder value generally means a greater degree of astigmatism correction is needed.
4. Axis
The axis measurement works together with the CYL value.
In fact, one measurement is not very useful without the other.
The axis tells your eye doctor where the astigmatism is located on the eye. It is measured in degrees ranging from 1° to 180°.
Think of it as a map that shows the direction of the corneal irregularity.
An axis of 90° represents the vertical meridian of the eye.
An axis of 180° represents the horizontal meridian.
For example, if your prescription says:
CYL: -1.50
Axis: 90°
It means you have 1.50 diopters of astigmatism correction positioned along the vertical meridian.
5. BC (Base Curve)
If you wear contact lenses, you may see a BC value on your prescription.
BC stands for Base Curve.
This measurement describes the curvature of the contact lens and how well it matches the natural shape of your cornea.
A properly fitted base curve helps the lens remain comfortable and stable throughout the day.
6. DIA (Diameter)
DIA refers to the diameter of the contact lens.
This number determines the overall size of the lens.
A lens that is too small or too large may affect comfort, stability, and vision quality. Your eye doctor selects the appropriate diameter based on the size and shape of your eye.

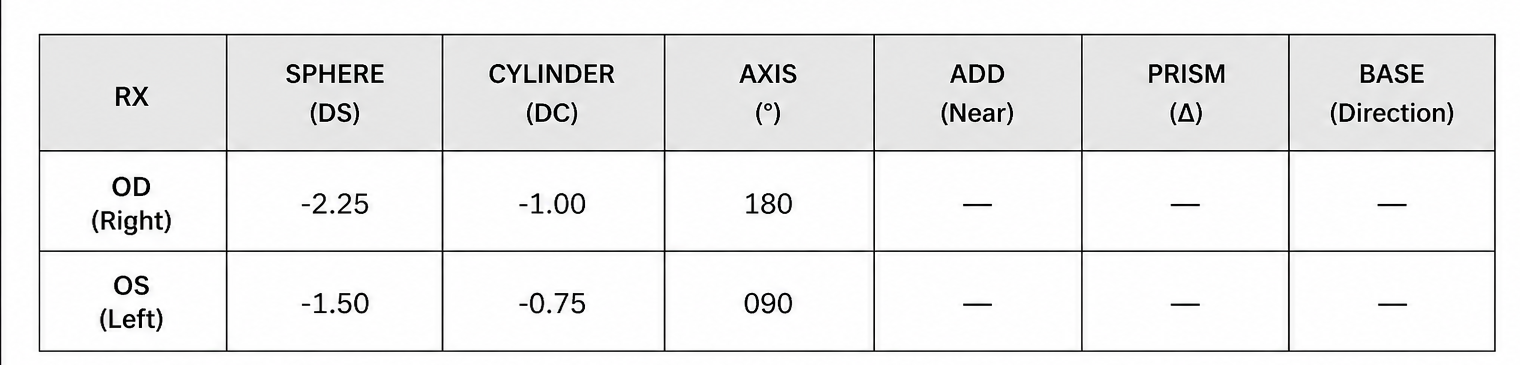

Astigmatism Prescription Example
| Element | OD (Right eye) | OS (Left eye) | What it means |
|---|---|---|---|
| Sphere (SPH) | -2.25 | -1.50 | Both eyes are nearsighted. Not related to astigmatism — corrects basic distance focus. |
| Cylinder (CYL) | -1.00 DC Moderate |
-0.75 DC Mild |
Confirms astigmatism in both eyes. Measures the power of correction needed for the irregular cornea. |
| Axis | 180° With-the-rule |
090° Against-the-rule |
Opposite axis types per eye. Each lens must be independently oriented. OS (ATR) is harder to stabilize in contact lenses. |
| ADD | — | — | Not needed. The patient is 34 — near addition typically required from age 40+ (presbyopia). |
| Prism / Base | — | — | No eye alignment issues detected. Not related to astigmatism. |
| PD | 63.0 mm (combined) | 63.0 mm (combined) | Distance between pupils. Ensures lenses are centred correctly over each eye. |
How Astigmatism Is Diagnosed?
Before creating a prescription, your eye doctor performs several tests to understand how light focuses inside your eye.
1. Visual Acuity Assessment
This is the familiar eye chart test where you read letters from a distance.
It helps determine how clearly you can see at different ranges and provides a starting point for further testing.
2. Refraction Test
During a refraction test, your eye doctor places different lenses in front of your eyes and asks which options appear clearer.
This helps determine your sphere, cylinder, and axis measurements.
3. Keratometry
Keratometry measures the curvature of your cornea.
Since astigmatism is often caused by an irregular corneal shape, this test helps identify the amount of distortion present.
4. Corneal Topography
Corneal topography creates a highly detailed map of the surface of your cornea.
It provides much more information than basic measurements and is especially useful when evaluating patients for LASIK and other vision correction procedures.
Understanding Your Prescription Is Only the First Step
Your astigmatism prescription explains your vision correction needs, but it doesn’t tell the whole story. If you’re experiencing headaches, eye strain, blurry vision, or difficulty driving at night, it’s time for a comprehensive eye exam.
At InSight Vision Center, our team evaluates your overall eye health and discusses treatment options based on your needs, including glasses, contact lenses, and LASIK for eligible patients with astigmatism.
Still Unsure What Your Astigmatism Prescription Means?
At InSight Vision Center in Fresno, CA, we help you understand your prescription and treatment options.
Closing Thoughts
Reading an astigmatism prescription becomes much less intimidating once you understand what each number represents. The sphere value tells you whether you’re nearsighted or farsighted, the cylinder value measures the amount of astigmatism, and the axis identifies where that correction is needed. Together, these measurements help create lenses that provide clear and comfortable vision. If you’re considering a more permanent solution, a comprehensive evaluation can help determine whether LASIK may be right for you.
Frequently Asked Questions About Astigmatism Prescription
FAQs – Astigmatism Prescription
